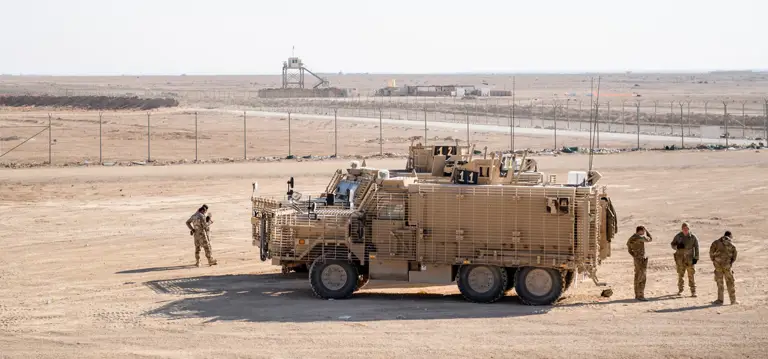

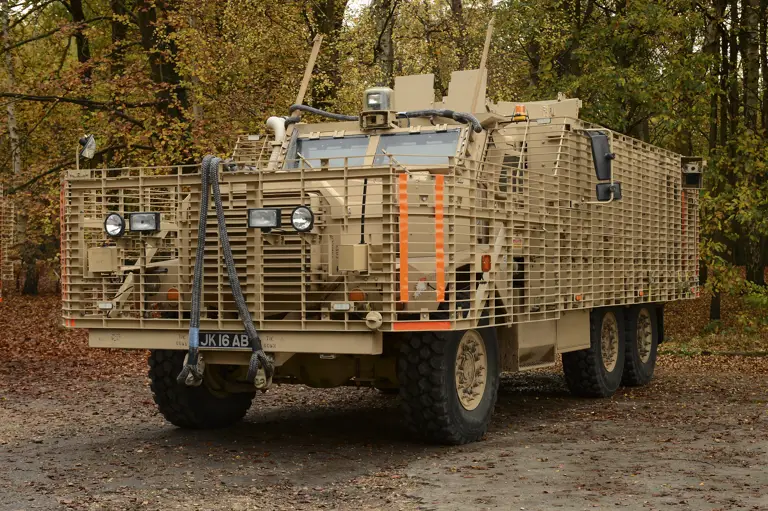

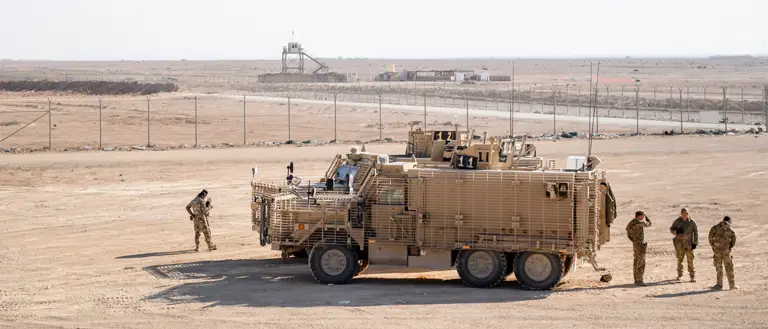

Mastiff

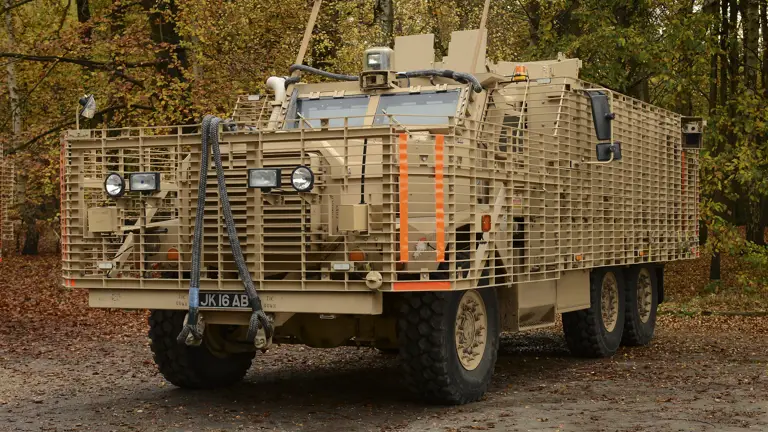

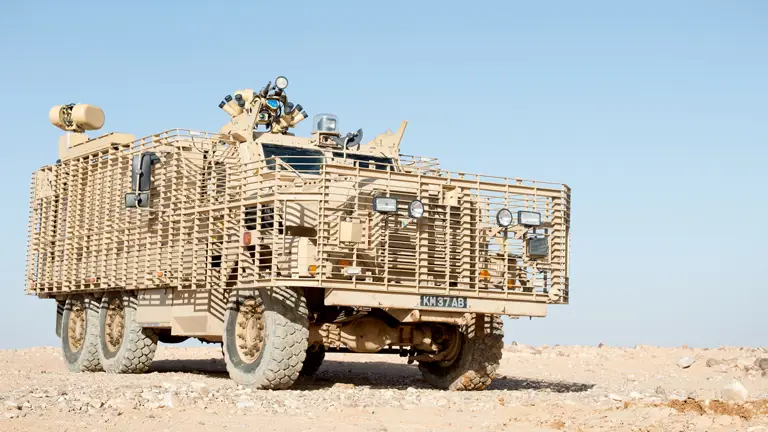

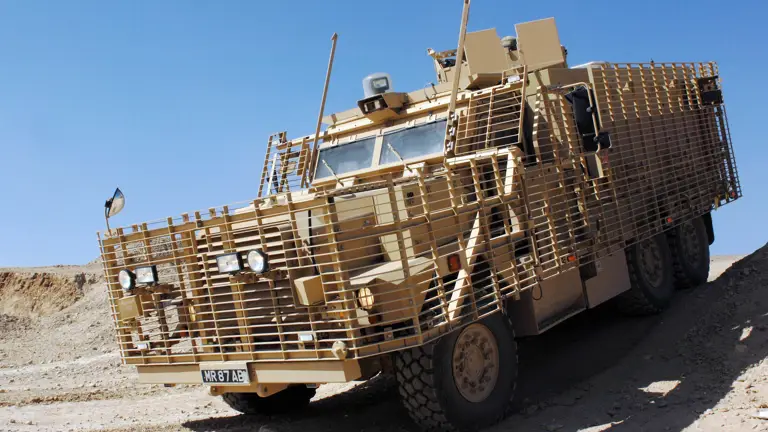

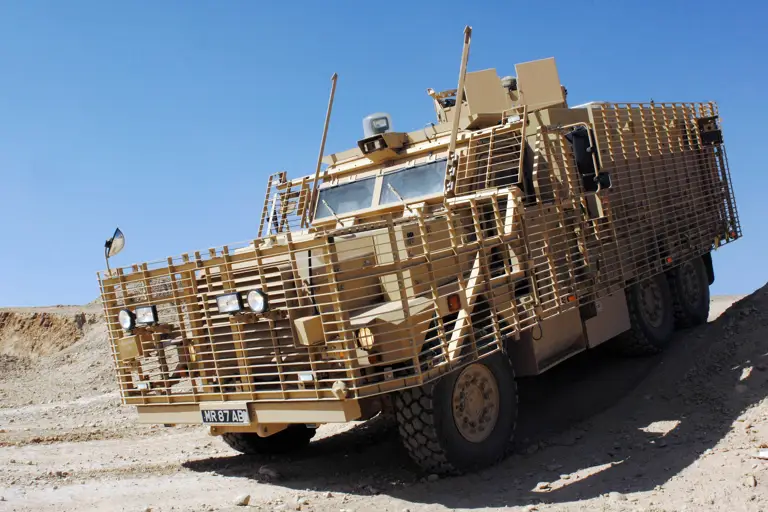

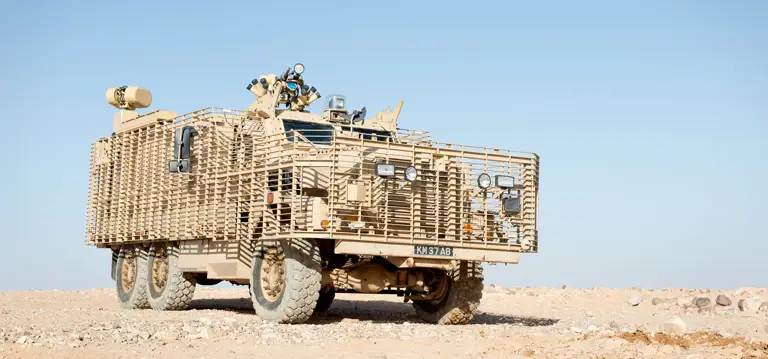

Mastiff is a heavily armoured, 6 x six-wheel-drive patrol vehicle which carries eight troops, plus two crew. It is currently on its third variation.

It is suitable for road patrols and convoys and is the newest in a range of protected patrol vehicles being used for operations.

Mastiff has a maximum speed of 90kph, is armed with the latest weapon systems, including a 7.62mm general purpose machine gun, 12.7mm heavy machine gun or 40mm automatic grenade launcher.

These wheeled patrol vehicles have a less intimidating profile than tracked vehicles and give commanders on the ground in Afghanistan more options to deal with the threats they are facing.

They have Bowman radios and electronic countermeasures and are fitted with additional armour beyond the standard level to ensure they have the best possible protection.

Length: 7.94m
Height: 3.2m
Width: 3.2m

Maximum Speed: 90 kph
Manufacturer: General Dynamics; Morgan Advanced Materials (MAM)

7.62 GPMG
12.mm heavy machine gun and 40mm grenade machine gun

Improvements on the Mastiff include:

Bigger axles and up-rated suspension
Increased crew capacity 2 + 8 as opposed to 2 + 6
Increased CES/stowage locations
Blast attenuating seats
Fold up seats allowing easier stowage if the vehicle is not full of crew
New situational awareness system incorporating a thermal imager for the driver

The vehicles are based on the US Cougar 6x6 manufactured by General Dynamics Land Systems – Force Protection, with UK integration work carried out by NP Aerospace (now Morgan Advanced Materials – Composites and Defence Systems).
