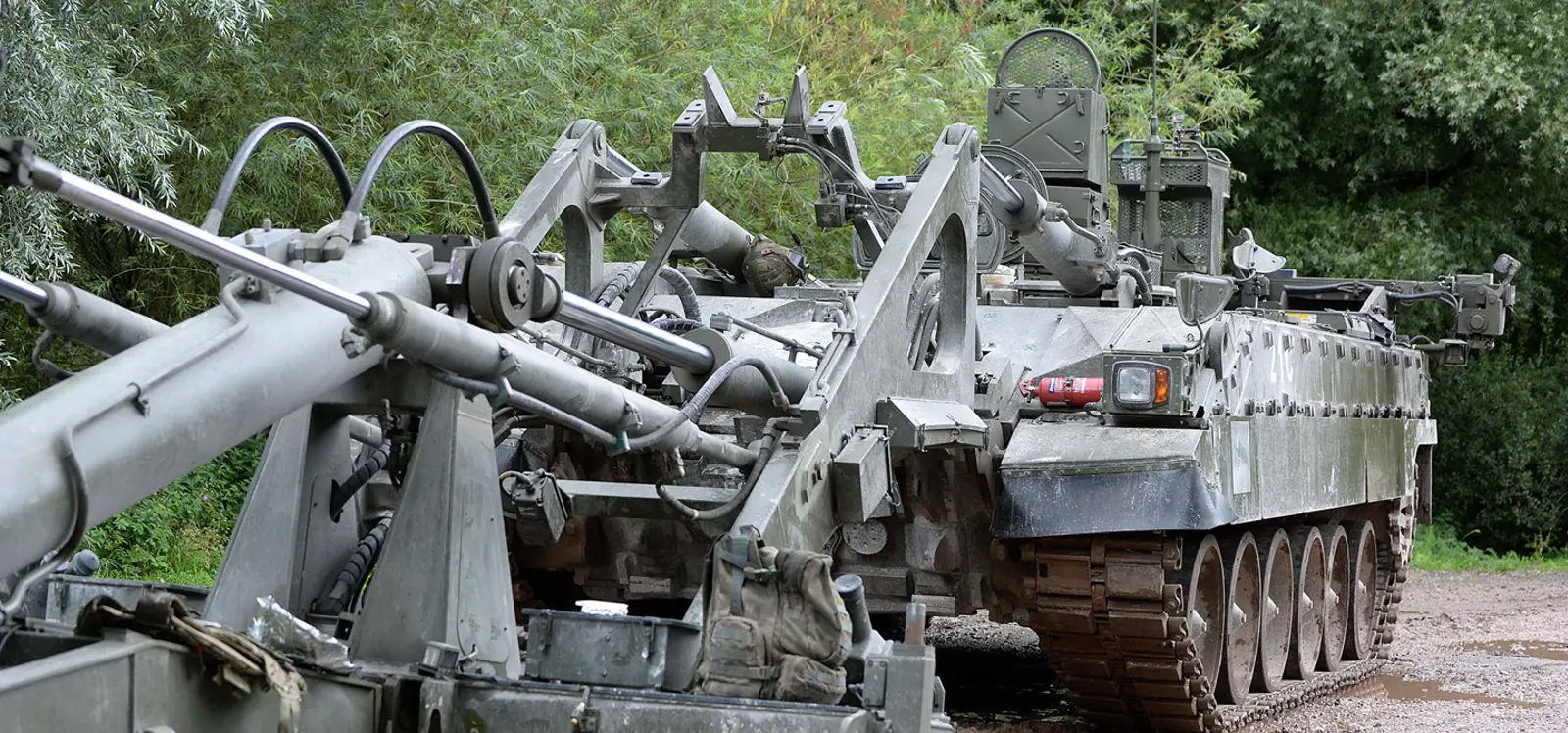

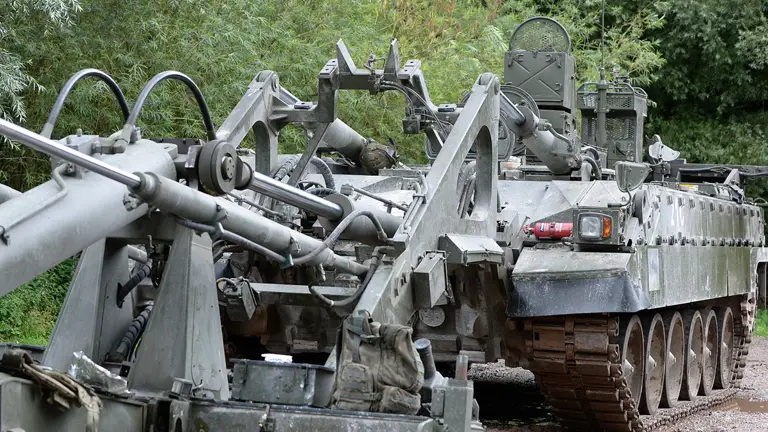

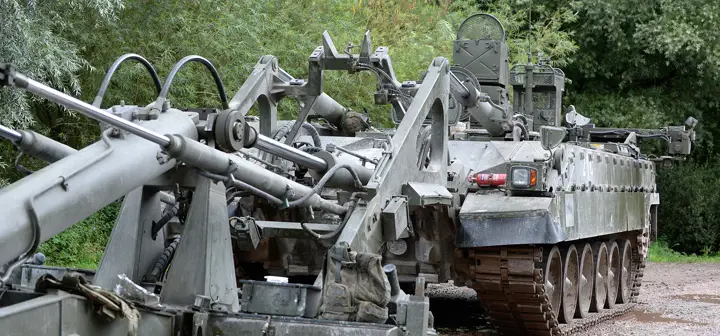

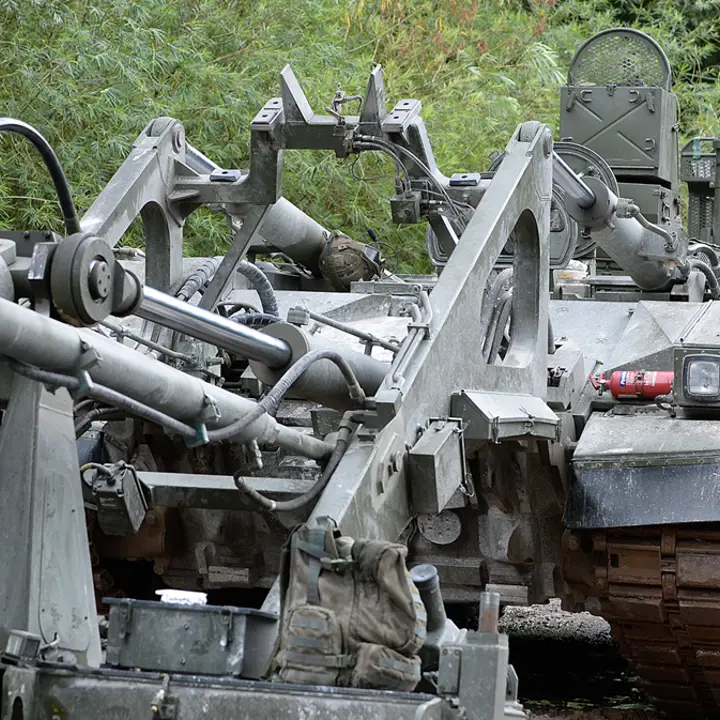

Titan Armoured Bridge Launcher

Titan is an armoured engineer vehicle designed to enable troops and vehicles to cross gaps of up to 60 metres by laying a selection of close support bridges. Along with Trojan it gives a common heavy armour fleet based on the Challenger 2 Main Battle Tank chassis.

Titan can carry and lay the current range of in-service close support bridges, providing ground manoeuvre formations with improved capability, giving them greater flexibility.

Improved visibility is achieved by incorporating direct and indirect vision systems including low light, image intensifying and thermal imaging capabilities. The interior, and to some extent the exterior, of the vehicles
have been designed around the crew station positions.

Titan has the flexibility to support a wide range of operations, including humanitarian missions.

Engine

Perkins CV12 diesel engine

Weight

62,500 kg

Maximum Speed

59 Kph

Armament

Stowage for crewman-portable light anti-tank weapons, fitted with NBC protection system

Carries

BR-90 Close Support Bridges

Spanning Systems

There are two basic spanning systems. The long span system allows for lengthening a 32 metre span to 44 metre using ABLE and the two span system which allows 2 x 32 metre bridge sets to be constructed by ABLE and secured in the middle by piers or floating pontoons, crossing a gap of up to 60 metres.

BR90 is supplied by BAE Systems. The future of BR90 is being addressed by Project TYRO.
