Starstreak High Velocity Missile

The Starstreak High Velocity Missile (HVM) is designed to counter threats from very high performance, low-flying aircraft and fast 'pop up' strikes by helicopter attacks.

The missile, which travels at more than three times the speed of sound, uses a system of three dart-like projectiles, allowing multiple hits on the target. HVM can be fired from the shoulder, from a lightweight multiple launcher or from the Stormer armoured vehicle.

Flight Time

8 seconds

Missile Range

1500m - 5500m

Guidance

Semi-automatic, line of sight, beam riding

Time into Action

SP - less than 10 seconds to 10 minutes. LML - 2 minutes. Single missile - less than 10 seconds

Ceiling

1000m

Lightweight Multiple Launcher & Shoulder-launched Starstreak

The Lightweight Multiple Launcher (LML) has an automatic fire unit and can be carried on any light wheeled vehicle, such as a Land Rover.

The multiple launcher employs three canister missiles together with clip-on equipment and a standard aiming unit. Three targets can be engaged in quick succession without the need for reloading.

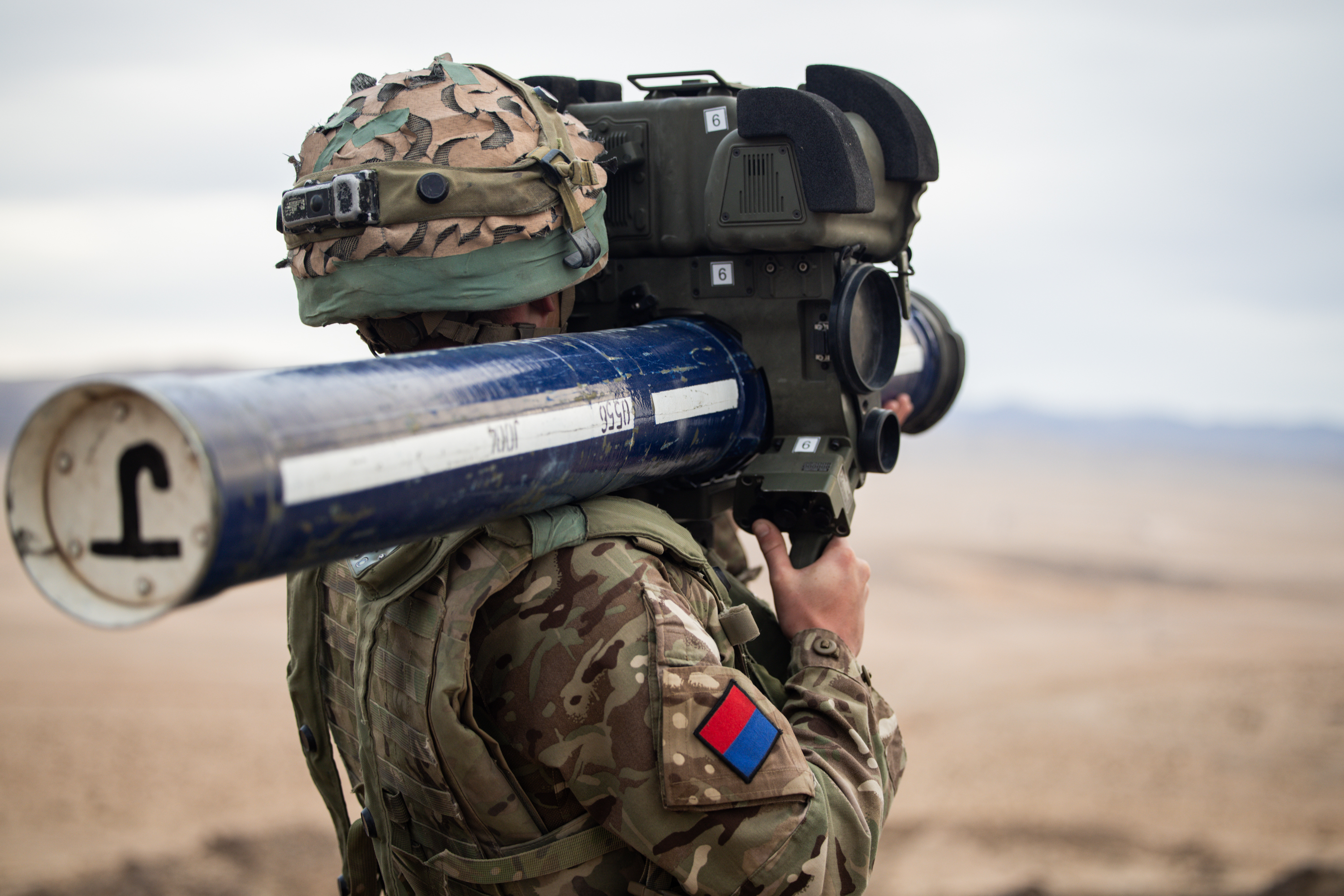

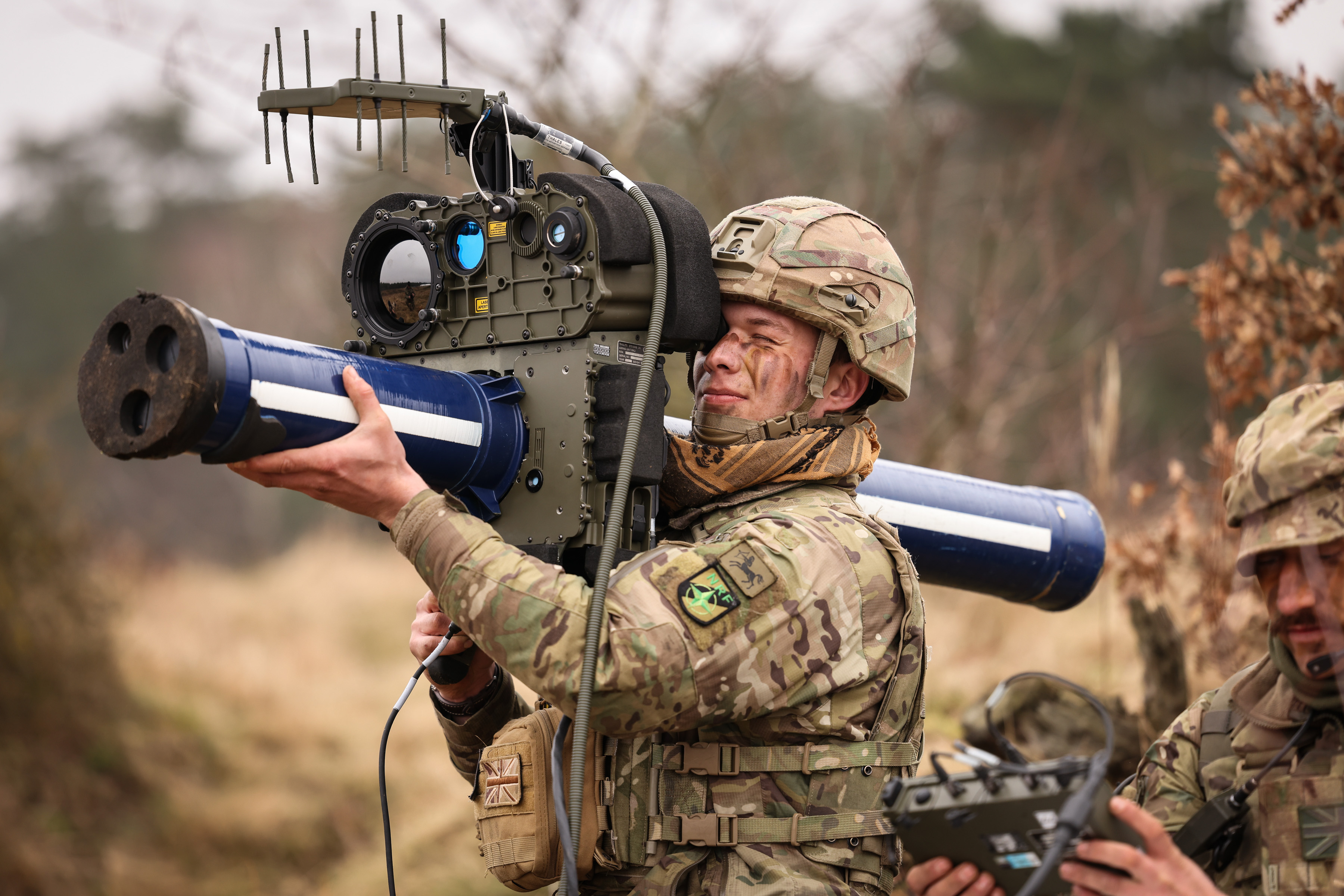

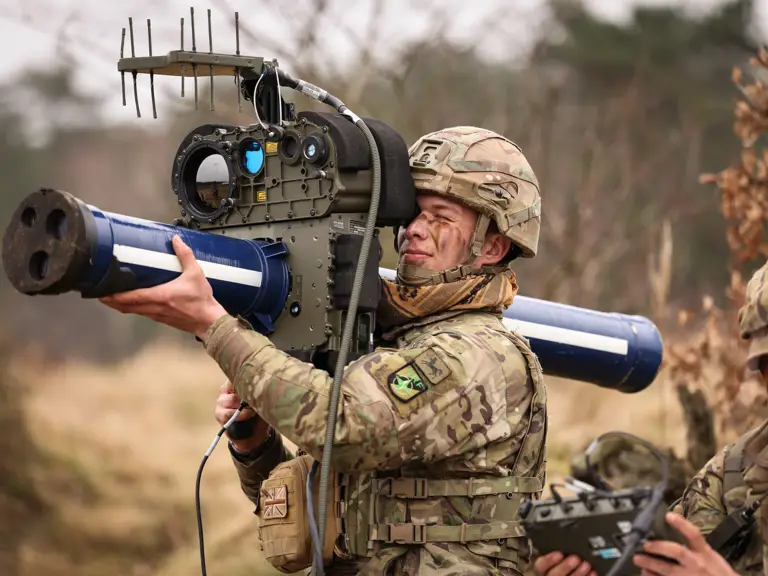

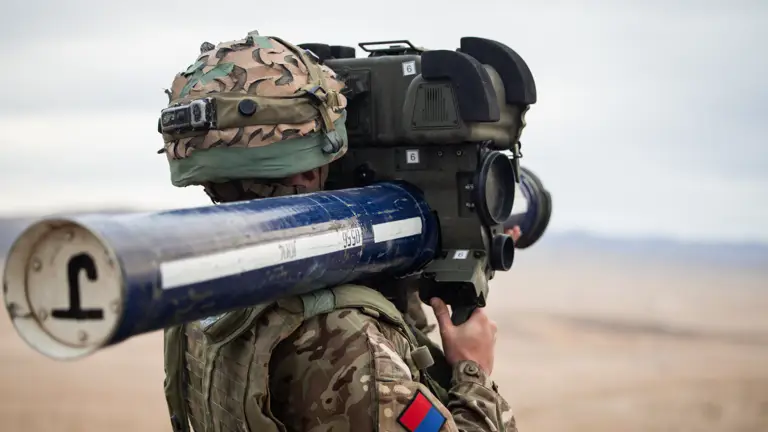

The portable shoulder-launched (single missile) Starstreak is assembled and ready to fire in a few seconds. Preparation for firing involves clipping an aiming unit on to the missile canister.

The aiming unit includes an optical head consisting of a stabilisation system, an aiming mark injector and a monocular sight. The target is acquired and optically tracked using the monocular sight and aiming mark.

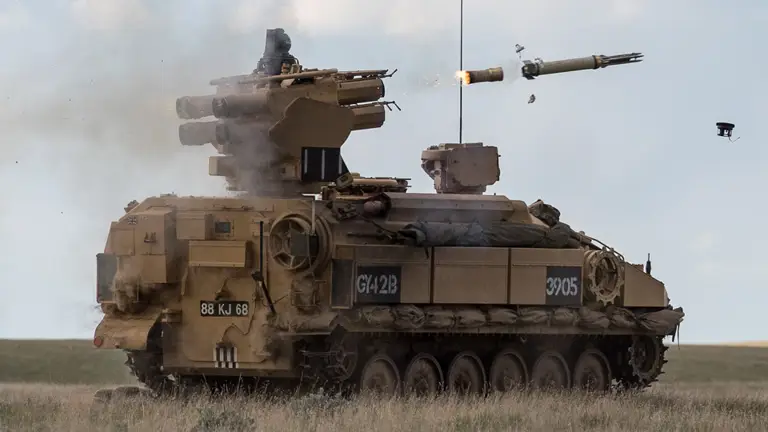

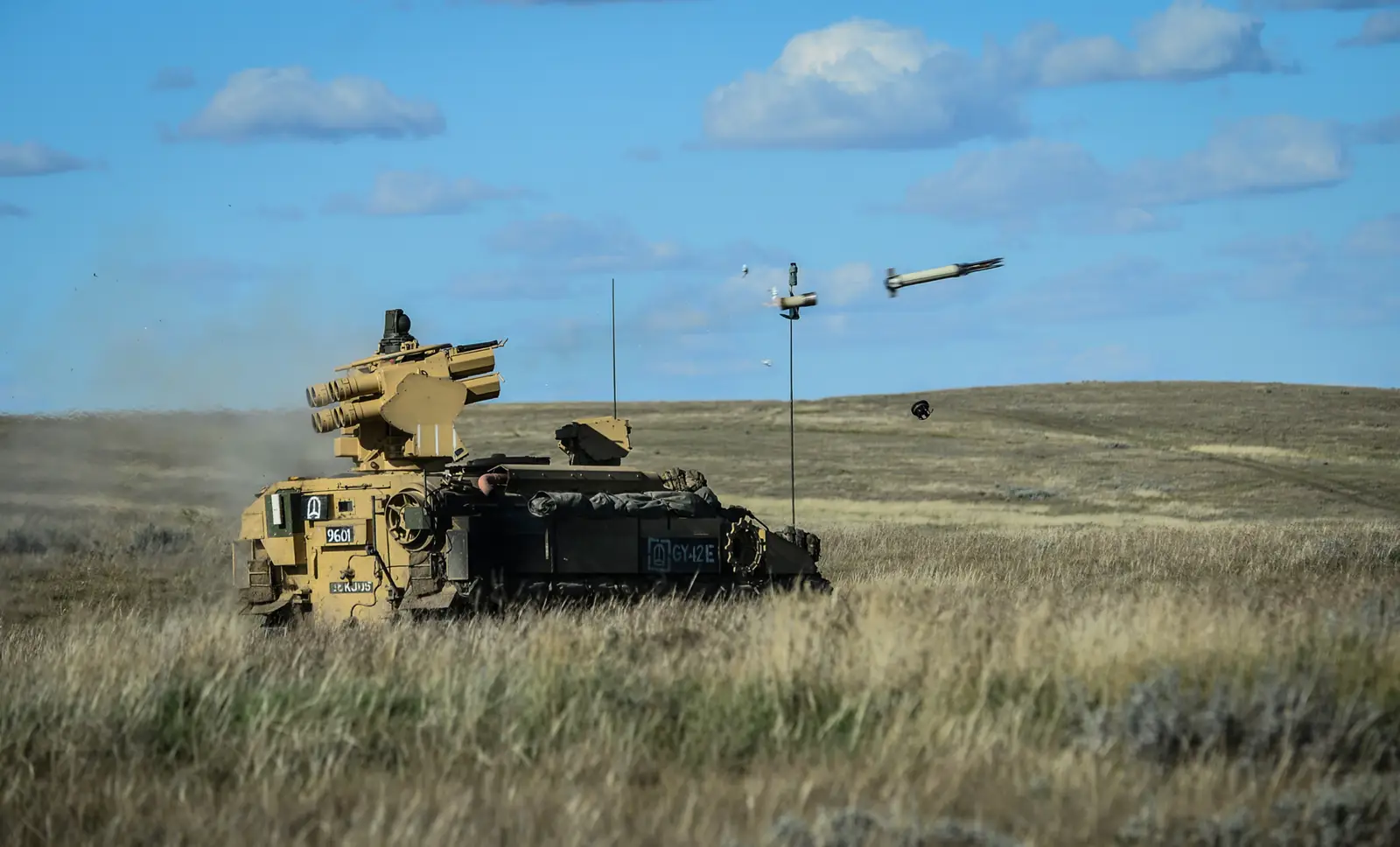

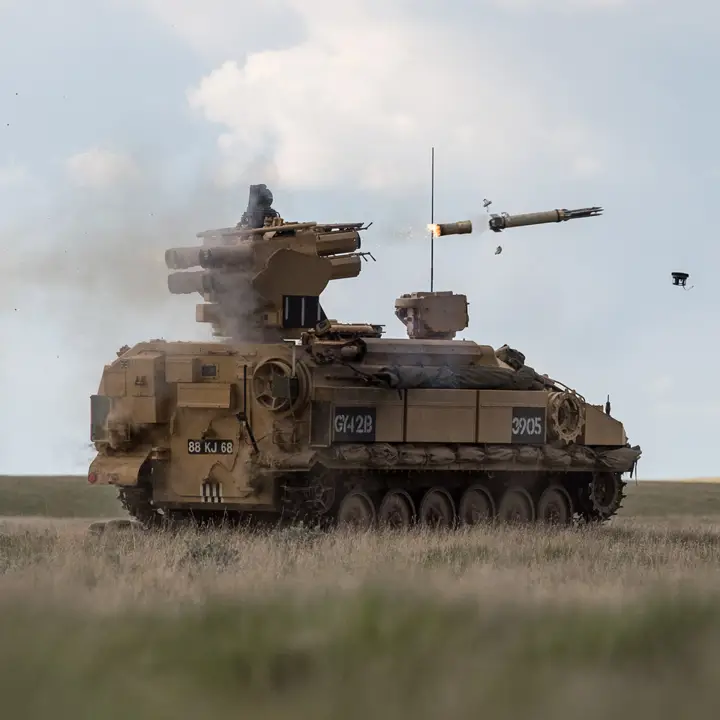

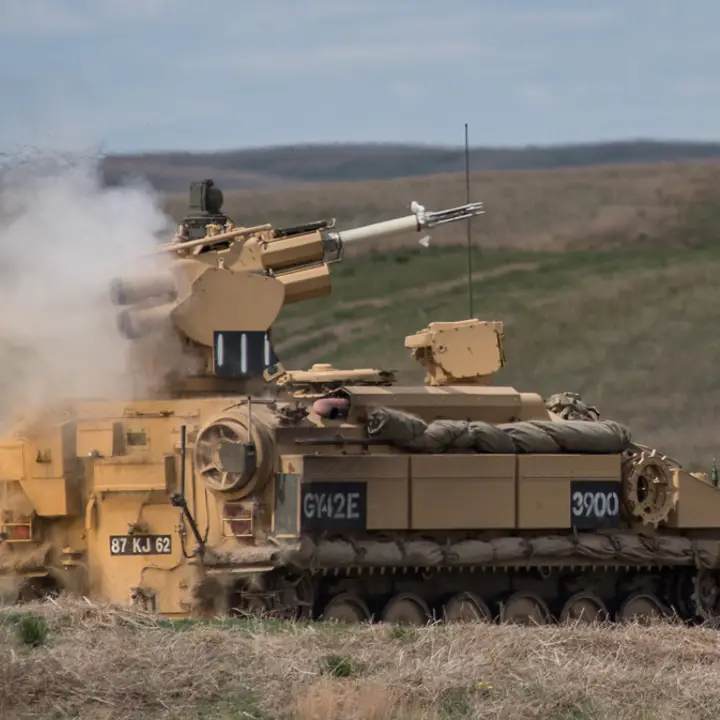

Starstreak self-propelled high-velocity missile system

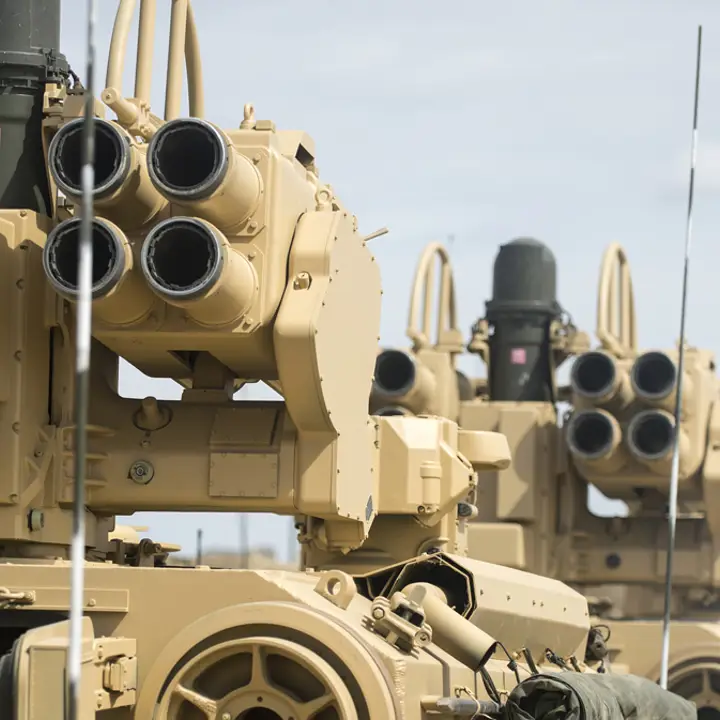

The Starstreak SP HVM is mounted on a tracked Stormer vehicle. The system has eight rounds of Starstreak missiles ready to fire, with a further 12 missiles carried.

SP HVM is fitted with a roof-mounted air defence alerting device (ADAD). The ADAD's infrared scanner and processor provide target detection and prioritisation, and the system automatically slews the weapon sight on to the target.
