Equipment

Logistic vehicles

Logistic vehicles

Logistics involves the setting up and running of an effective, self-contained transport network. To keep our guns firing, tanks driving and soldiers fighting, takes vast amounts of fuel, food and ammunition. Logistic vehicles provide the machine power to keep the Army operating at its highest level.

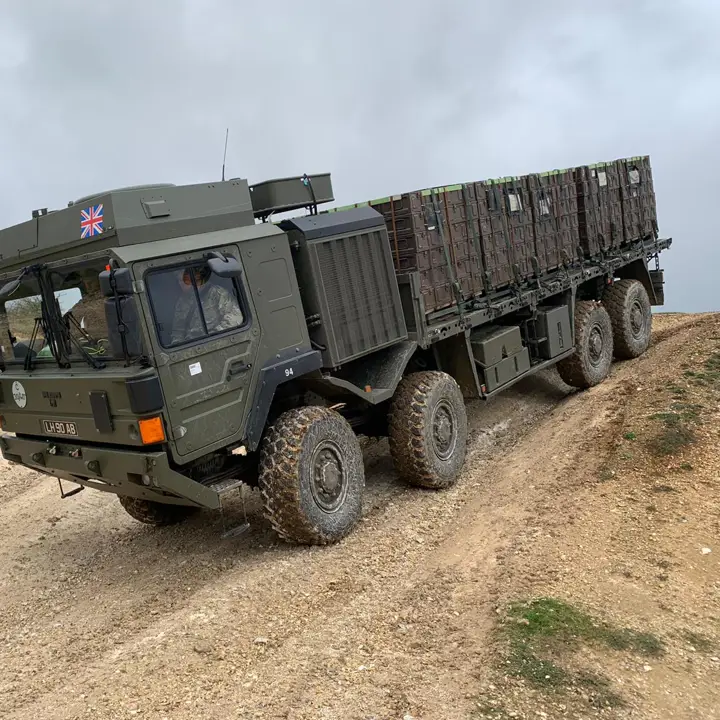

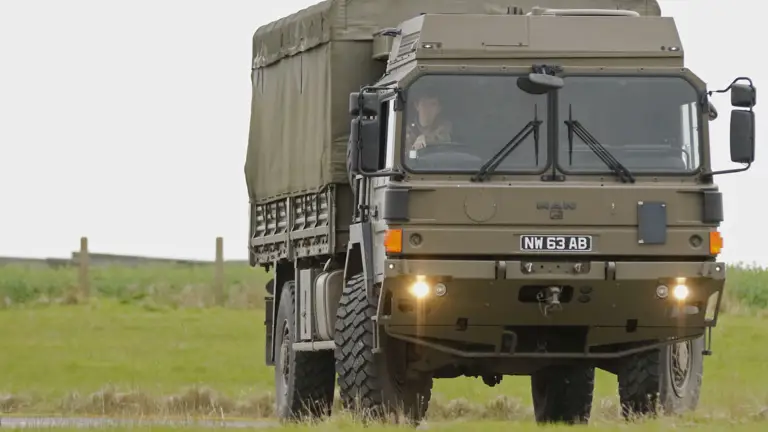

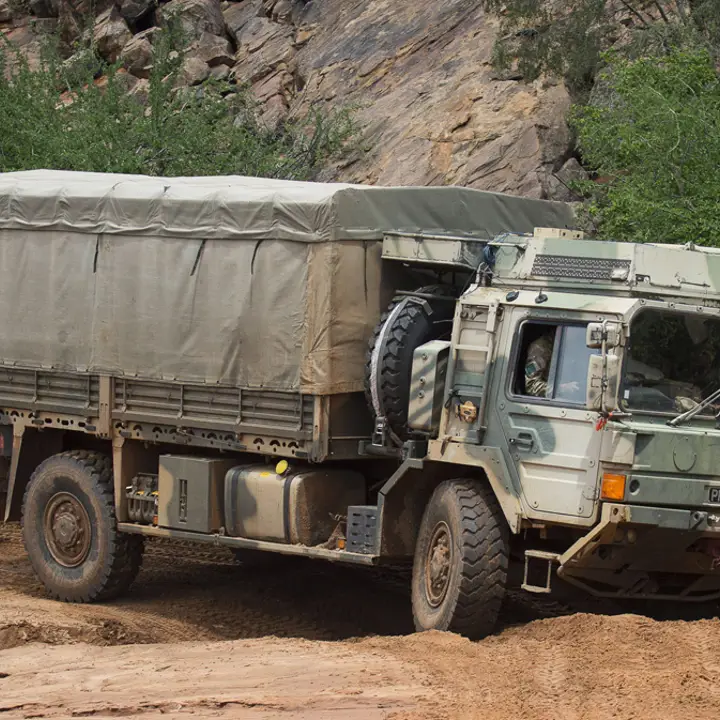

Logistic Support Vehicles (LSV)

The family of Support Vehicles, built by MAN Truck and Bus UK Ltd, entered service in 2008. The SV fleet is the Army's 'workhorse' delivering logistic effect for all Army units.

The SV fleet provides far greater mobility than previous generation cargo vehicles and can be fitted with armour, communications and ECM equipment, and a 7.62 mm machine gun for protection.

Variants include:

  • 6 Tonne (Medium Mobility)
  • 9 Tonne (Medium Mobility) and (Improved Medium Mobility)
  • 15 Tonne (Medium Mobility)
  • Unit Support Tanker (UST) (Medium Mobility and Improved Medium Mobility)

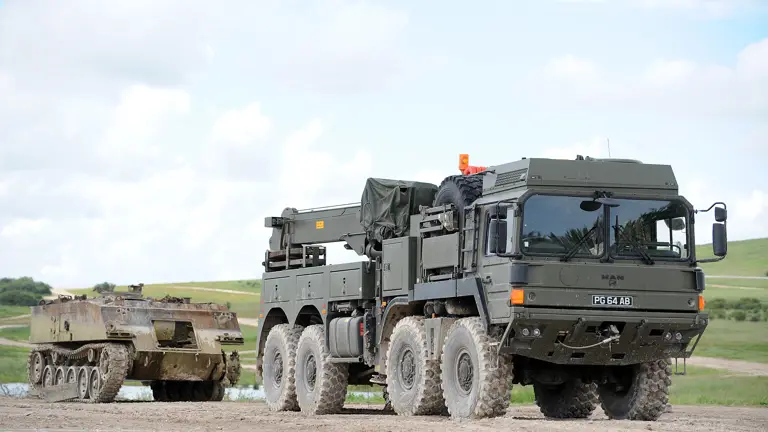

  • Recovery Vehicle (Improved Medium Mobility)

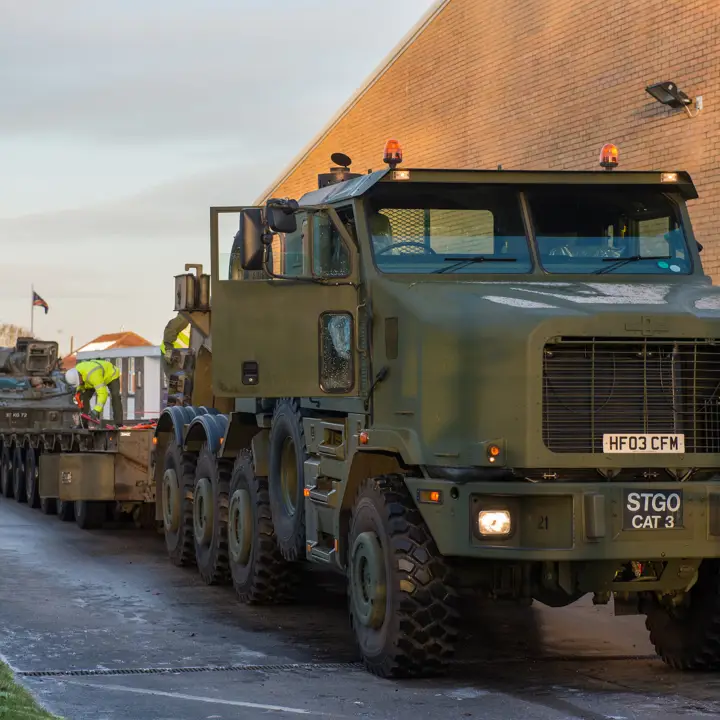

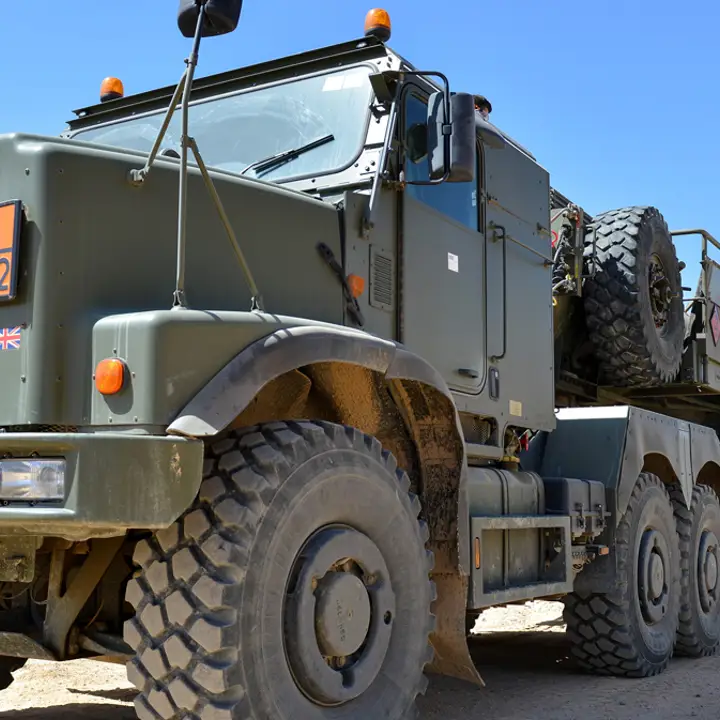

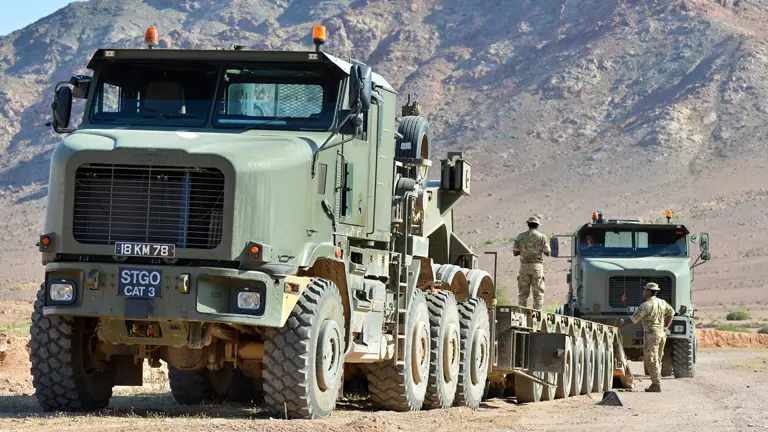

Heavy equipment transporter (HETS)

Overview

Tank transporters or Heavy Equipment Transporters are capable of carrying 70-tonne main battle tanks.

The HET can move its load rapidly and cost-effectively, saving wear and tear on the tracks and the roads.

The HET is the most powerful tank transporter in production. It consists of an Oshkosh 1070F 8 x 8 tractor truck and a King Trailer GTS 100 seven-axle semi-trailer. Its after-cooled Caterpillar C18 turbocharged diesel engine produces 700bhp.

Dimensions

Icon_Length.svg

Length

20m

Icon_Width.svg

Width

2.9m

Icon_Height.svg

Height

3.8m

Specifications

Icon_Weight.svg

Load capacity

72,000 KG

Icon_Crew.svg

Crew

2 + 10

Icon_Manufacturer.svg

Manufacturer

Oshkosh Defense

Demountable rack offload & pickup

Overview

Demountable Rack Offload and Pickup System (DROPS) vehicles form the logistic backbone of the British Army.

There are two types of vehicle - the Leyland Medium Mobility Load Carrier (MMLC) and the Foden Improved Medium Mobility Load Carrier (IMMLC). DROPS has the ability to tow a long-wheelbase trailer which allows it to carry two loads using one driver.

Both trucks are 8 x 6 load carriers with a 15-tonne flatrack payload, allowing the rapid loading and unloading of flatracks or containers.

IMMLC is used primarily as an ammunition carrier in support of AS90 155mm self-propelled guns. MMLC operates solo, or towing a skeleton trailer.

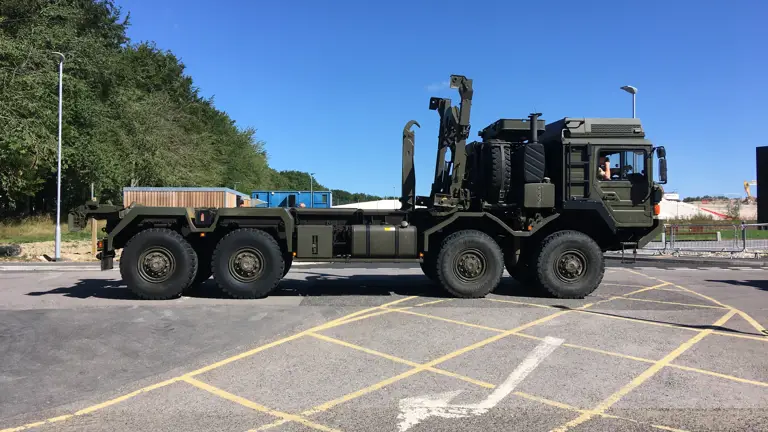

It is anticipated that the operational DROPS vehicles will be replaced by the Enhanced Pallet Load System (EPLS) which will be based on the 15-tonne SV variant.

Dimensions

Icon_Length.svg

Length

9.11m

Icon_Width.svg

Width

2.5m

Icon_Height.svg

Height

3.18m

Icon_Weight.svg

Weight (kerb)

14,040 kg

Icon_Weight.svg

Weight (laden)

32,000 kg (MMLC) 32,960 kg (IMMLC)

Icon_Weight.svg

Load capacity

15,000 kg

Specifications

Icon_Range.svg

Range

300 miles

Icon_Crew.svg

Crew

2

Icon_Manufacturer.svg

Manufacturer

Leyland; Foden

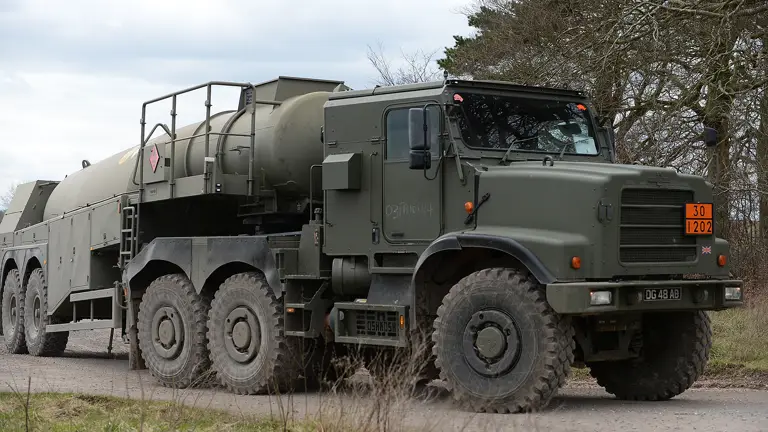

Close support tanker

Overview

The Oshkosh wheeled tanker is a highly mobile vehicle deployed in the Logistic Support Regiments and Transport Regiments and it forms the backbone of the British Army’s bulk fuel and water transportation.

It has deployed on operations in Iraq and Afghanistan and can be fitted with enhanced blast-proof armour for driver and crew protection.

Variants

There are three variants in use:

15000-litre tactical air refueller

20000-litre close support tanker (fuel)

18000-litre close support tanker (water)

Dimensions

Icon_Length.svg

LENGTH

15M

Icon_Width.svg

WIDTH

2.5m

Icon_Height.svg

HEIGHT

3.5m

Specifications

Icon_Weapons.svg

WEAPONS

7.62MM MACHINE GUN

Icon_Engine.svg

Engine

11.9 LITRE CATERPILLAR C-12

Icon_Speacialism.svg

LOAD CAPACITY

20,000 LITRES (FUEL) 18,000 LITRES (WATER)

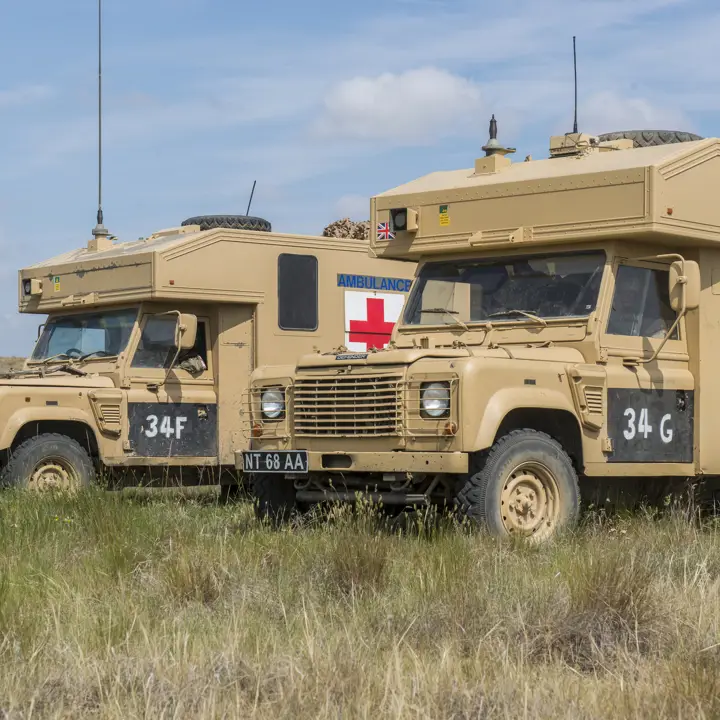

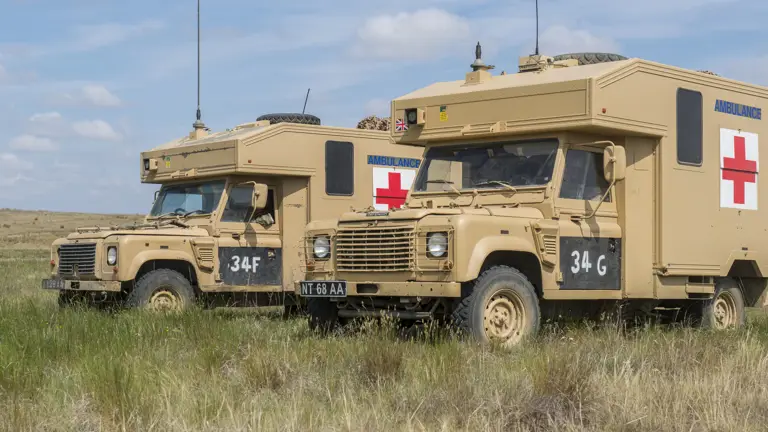

Land Rover battlefield ambulance

The Land Rover battlefield ambulance is based on the TUM chassis.

It has a capacity for a combination of up to four stretchers or six seated casualties and provides a very high standard of medical facilities.

It is also air portable and meets amphibious requirements.

Dimensions

Icon_Length.svg

Length

3.723

Icon_Width.svg

Width

1.79m

Icon_Height.svg

Height

1.99m

Specifications

Icon_Weight.svg

Weight

3700 kg

Icon_Engine.svg

Engines

2.495 LITRE 4 CYLINDER

Icon_Manufacturer.svg

Manufacturer

Land Rover

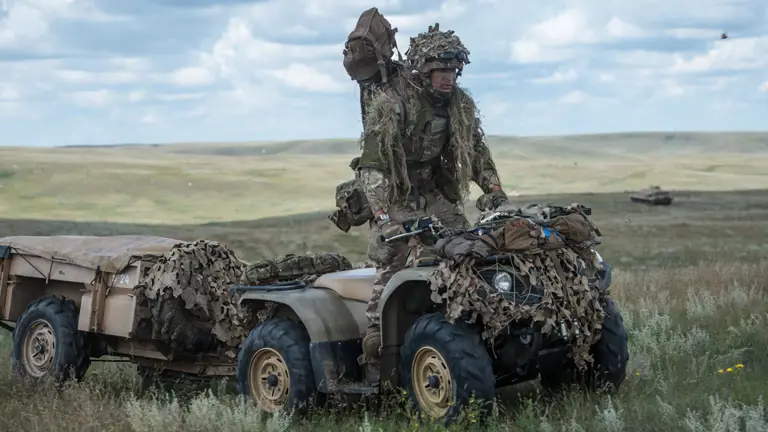

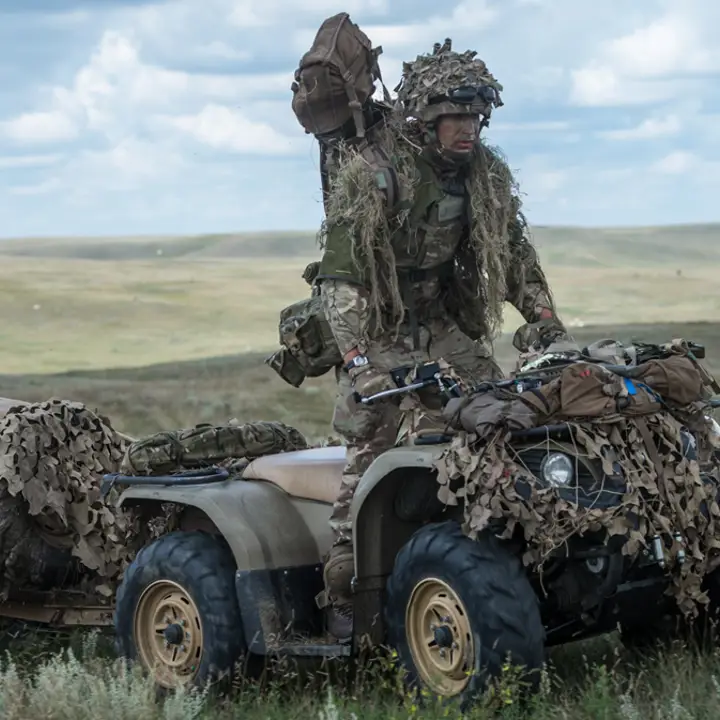

Quad bike

Delivering vital combat supplies to troops on the ground, quad bikes and trailers provide a vital service on front line operations.

The latest quads deliver food, water and ammunition to the front line in difficult to access areas or where larger vehicles are not suitable, effectively moving alongside dismounted troops.

The latest quad bikes and trailers come with a number of upgrades, including:

  • left-hand throttle, which provides a dual throttle fit giving greater manoeuvrability in theatre.
  • dual stretcher fit on trailer - to evacuate two casualties at a time, thereby speeding up emergency aid.

The ATVs alone can reach speeds of up to 75kph, reduced to a recommended speed of 50kph with the trailer. The limiting factor in both scenarios is the operating terrain. Both can operate through water up to half their wheel height.
